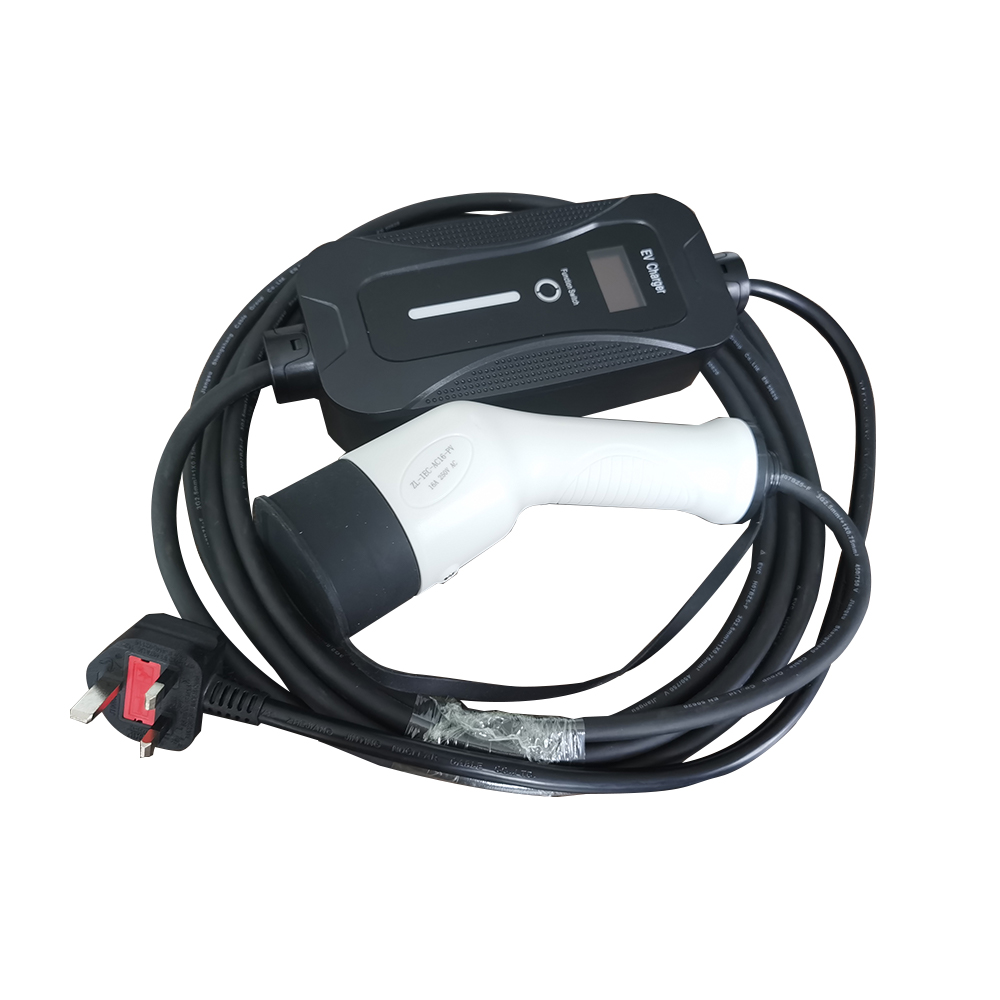

3.5kw 13A Level 2 Type 2 Portable EV Charger With UK Plug

Availability:
Quantity:


Product Description

Type 2 Portable EV Charger 6A-13A With UK Plug Mobiler Charger For Electric Cars


Do you want to be able to charge your electric car without immediately purchasing a complete charging station? Then this waterproof home charger (also called mobile charger) is the ideal solution. With this charger you can simply charge by plugging the plug into a normal wall socket. This can be done at home, at the office or at the campsite, so that you can charge your electric car wherever you want. Since the mobile charger is also fully adjustable, you can be sure that you can charge easily and safely, even when there is relatively little voltage available on the group.


A portable and easy charging solution for when you are traveling or you are away from a traditional charging station. This cable allows you to charge your EV/PHEV that has Type 2 port from main household/public sockets.


Our Level 2 Type 2 Portable EV Charger with UK Plug is user-friendly and intuitive. It features a user-friendly display that provides real-time charging information, allowing you to monitor the progress and status of your charging session easily. The charger also incorporates smart charging technology, optimizing the charging process for maximum efficiency.


By investing in our Level 2 Type 2 Portable EV Charger with UK Plug, you are not only enhancing your EV charging experience but also contributing to a greener future. Electric vehicles are a crucial part of sustainable transportation, and our charger empowers you to be part of the solution.


Specification


Product Name 13A Car Charger Portable Type 2 EV Charger With UK Plug
Length 5m or customized length
Rated current 13A
Operation Volatge 110/250V
Insulation resistance more than 500M Ohm(DC500V)
Contact resistance 0.5m Ohm max
Terminal temperature rise less than 50K
Withstand voltage 1500V
Mechanical life no-load plug in/out  more than 10000 times
Coupled insertion force 45N~100N
Impact of external force can afford 1M drop
Operating Temperature -30~+50ºC
Case material thermoplastic, flame retardant grade UL94 V-0
Termminal Copper alloy , silver plating
Control box   function leakage protection;
overvoltage under-voltage protection;
over load protection;
lightning protection;
Features Easy: Charge at home, at work, or anywhere with the   socket. No installation is required, just an intuitive pairing process. Plug   and charge, wherever you are;
Safe: Protecting Earthing detection;
Designed for electric cars using the IEC 62196  standard,   this car charger offers a maximum charging speed of 3.6 kW per hour. The   precision engineering of the internal circuit board allows automatic   detection and correction of any problems during charging, including any   issues with minimal, unstable, or excessive voltage, current, frequency,   earth leakage, and temperature even during lightning and electrical storms.



Portable EV Charger

     Characteristic:

           1.Lightning protection

           2.Over-voltage protection

           3.Leakage protection

           4.Over-load protection

           5.Waterproof IP66





FAQ OF PORTABLE EV CHARGER


Q1: Rated current

A: Fixed current : 13A

    Adjustable current : 6A/8A/10A/13A



Q2: Earth setting

A: We have 2 options for your reference. YES grounding means earthing is on. No grounding means earthing is off.


Q3: Delivery time

A: Sample time is within 3 days.

    Bulk order is 7-10 working days.


Q4: Warranty

A: 1 year.



Q5. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive. Airline and sea shipping also optional.



Q6. How to proceed an order for EV charging cables?

A: 1) let us know your requirements or application.

    2) We quote according to your requirements or our suggestions.

    3) Customer confirms the samples and places deposit for formal order.

    4) We arrange the production.



Q7. Is it OK to print my logo on the products?

A: Yes. Please inform us formally before our production.



Q8: How to deal with the faulty?

A: 1)Our products are produced in strict quality control system and the defective rate will be less than 0.5%.



2)During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
