CCS2
Hpconnect
The CCS combines three-phase with rapid three-phase charging using alternating current at a maximum of 43 kilowatts (kW), as well as direct-current charging at a maximum of 200 kW and the future perspective of up to 350 kW – all in a single system. The CCS includes the connector and inlet combination as well as all the control functions. It also manages communications between the electric vehicle and the infrastructure. As a result, it provides a solution to all necessary charging requirements.

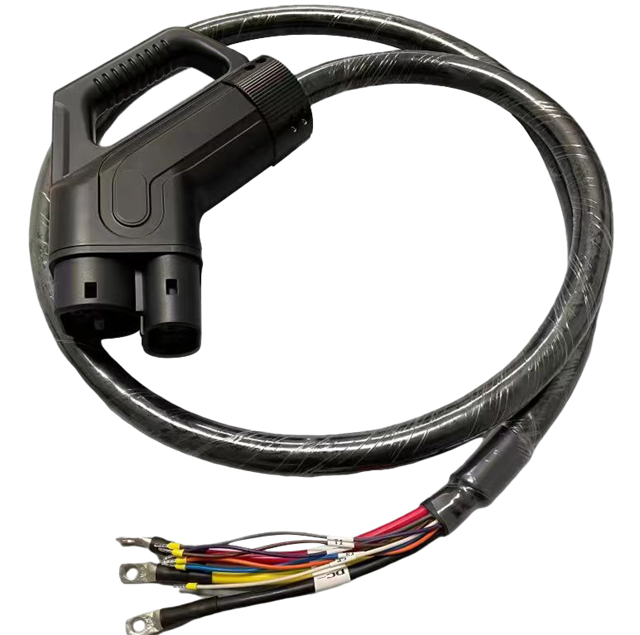

| Product Name | CCS2 IEC 62196-3 DC Charger |
| Length | 5m or customized length |
| Rated current | 63A/80A/125A/160A/200A/250A |
| Operation Volatge | 1000V |
| Insulation resistance | more than 500M Ω Max(DC500V) |
| Contact resistance | 0.5m Ω Max |
| Terminal temperature rise | less than 50K |
| Withstand voltage | 3000V |
| Mechanical life | no-load plug in/out more than 10000 times |
| Coupled insertion force | 45N~100N |
| Impact of external force | can afford 1M drop |
| Operating Temperature | -30~+50ºC |
| Case material | thermoplastic, flame retardant grade UL94 V-0 |
| Termminal | Copper alloy , silver plating |
| Features | 120kw DC CCS2 EV charging plug with UL certification for the charging station |
| Rated current have 60A 80A 125A 160A 200A and 250A, have shield wire. |
Q1: Rated current
A: 63A/80A/125A/160A/200A/250A
Q2: Cable length
A: We support customization.
Q3: Delivery time
A: Sample time is within 3 days.
Bulk order is 7-10 working days.
Q4: Warranty
A: 1 year.
Q5. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive. Airline and sea shipping also optional.
Q6. How to proceed an order for EV charging cables?
A: 1) let us know your requirements or application.
2) We quote according to your requirements or our suggestions.
3) Customer confirms the samples and places deposit for formal order.
4) We arrange the production.
Q7. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.
Q8: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and the defective rate will be less than 0.5%.
2)During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
