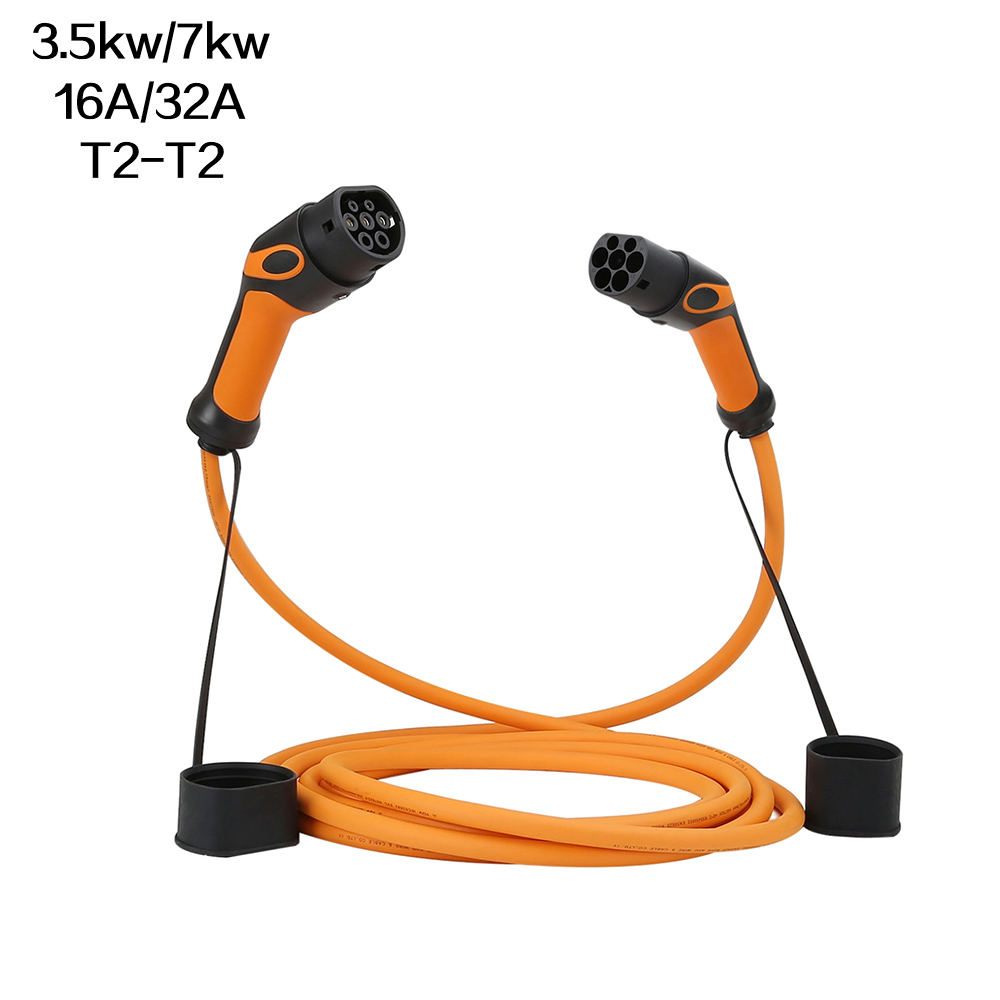

Type 2 to Type 2 EV charging cable
Hpconnect
The EV charging cable is compatible with 16A/32A public and home charging points. Compatible with Type 1/Type 2 Electric Vehicles and Type 1/Type 2 Hybrid Vehicles. With an IP65 water and dust resistance rating, which means the cable will still work even in dirty or rainy situations.You don't have to worry about charging when you're outside. Find a suitable public charging station, remove the EV charging cable from the trunk of your EV car, and you're ready to charge your EV. Practical and convenient in use. Such a practical tool you will need it.
Name1
Name2
Name3
Name4
Characteristic:
1.Lightning protection
2.Over-voltage protection
3.Leakage protection
4.Over-load protection
5.Waterproof IP65(operating state)
Product Name | IEC 62196-2 Model 3 Charger |
Length | 5m or customized length |
Rated current | 16A/32A |
Operation Volatge | 250V/480V |
Insulation resistance | more than 500M Ohm(DC500V) |
Contact resistance | 0.5m Ohm max |
Terminal temperature rise | less than 50K |
Withstand voltage | 2000V |
Mechanical life | no-load plug in/out more than 10000 times |
Coupled insertion force | 45N~100N |
Impact of external force | can afford 1M drop |
Operating Temperature | -30~+50ºC |
Case material | thermoplastic, flame retardant grade UL94 V-0 |
Termminal | Copper alloy , silver plating |
Features | Easy: Charge at home, at work, or anywhere with the socket. No installation is required, just an intuitive pairing process. Plug and charge, wherever you are; |
Safe: Protecting Earthing detection; | |
Designed for electric cars using the IEC 62196 standard. The precision engineering of the internal circuit board allows automatic detection and correction of any problems during charging, including any issues with minimal, unstable, or excessive voltage, current, frequency, earth leakage, and temperature even during lightning and electrical storms. |
Q1: Rated current
A: 16A/32A
Q2: Maximum charging power
A: 3.5KW/7KW/11KW/22KW
Q3: Delivery time
A: Sample time is within 3 days.
Bulk order is 7-10 working days.
Q4: Warranty
A: 1 year.
Q5. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive. Airline and sea shipping also optional.
Q6. Can I have a sample order for EV charging cables?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q7. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q9: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and the defective rate will be less than 0.5%.
2)During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
